UL Listed & NSF Certified Wafer Type Butterfly Valves for Flanged Piping Systems

The Wafer Type Butterfly Valve, Hants Model HBF-300W, is a compact flow-control valve designed for fire protection systems, potable water applications, municipal water distribution, and industrial fluid networks.

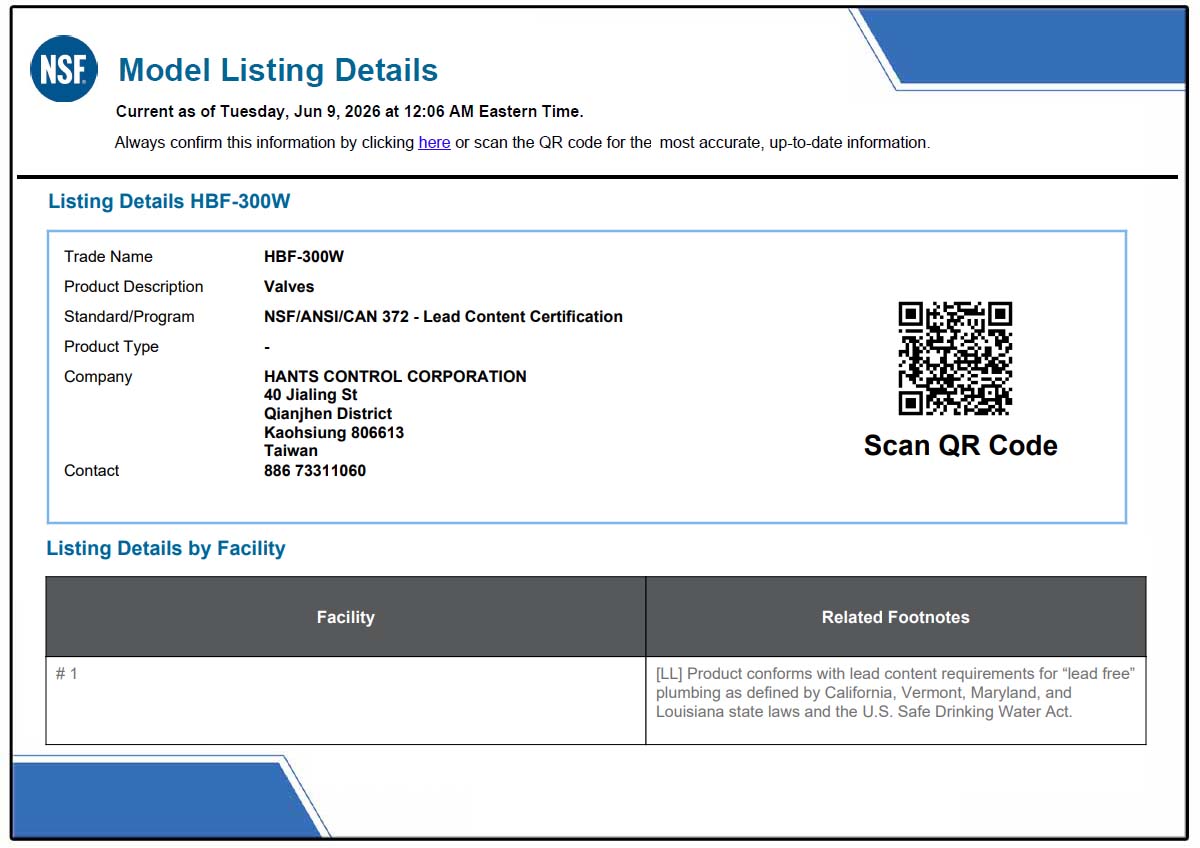

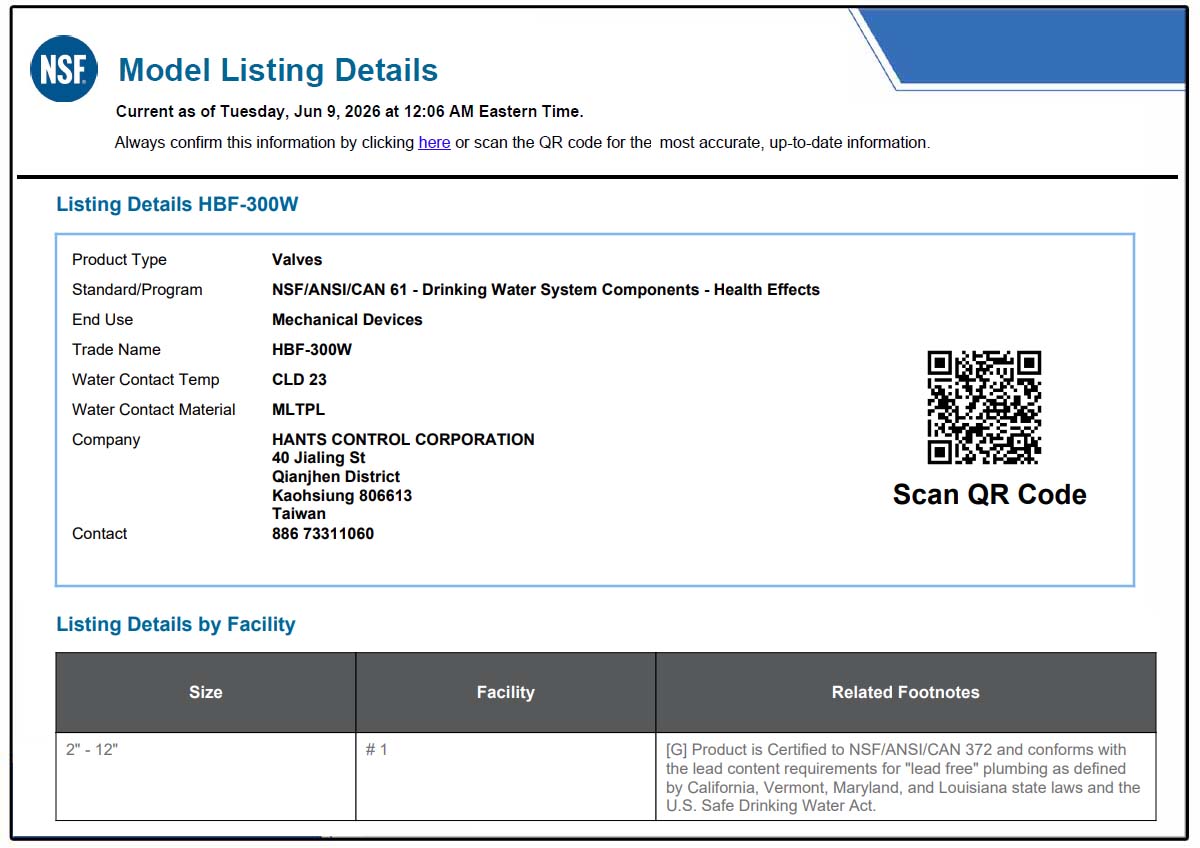

This model series is available in multiple certified configurations for different project requirements, including UL-listed configurations for fire protection systems, NSF-certified configurations for drinking water applications under NSF/ANSI/CAN 61 and NSF/ANSI 372, and AWWA-compliant configurations for municipal waterworks systems.

Hants is a sub-brand of us. As a professional manufacturer of wafer butterfly valve and fittings, supplying reliable fire protection solutions for various industries.

Application of Hants wafer butterfly valve for potable water, fire protection, and underground waterworks

Key Features and Benefits of Wafer Butterfly Valve

Features dual certifications with UL listing and NSF certification, fully complying with stringent fire safety standards and potable water sanitation regulations to ensure ultimate system safety and compliance.
Designed for both efficient fire sprinkler networks and safe drinking water or industrial water systems, providing highly reliable, lightweight, and cost-effective fluid control.
Equipped with a high-visibility yellow indicator that allows operators to instantly and accurately verify the current open or closed position of the valve disc.
Includes an integrated electronic tamper switch that seamlessly connects with central control panels to trigger an immediate alarm if the valve is operated or moved unauthorizedly.
Features a precision compact wafer design conforming to ISO 5211 and API 598 standards, facilitating easy installation between flanges and reducing maintenance downtime.

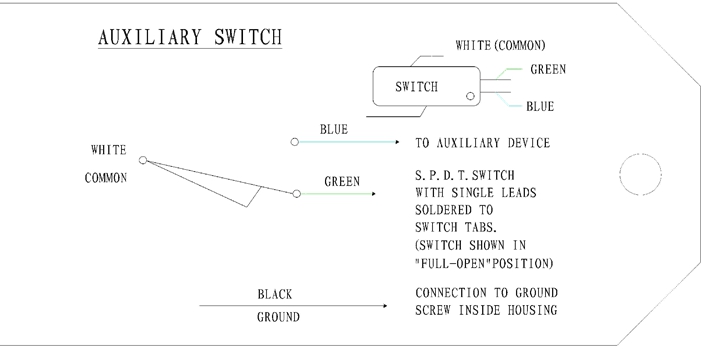

Signal switch wiring diagram — Signal Switch Wiring Diagram

Installation Guide for Wafer Butterfly Valve

Set auxiliary screw at proper place, to regulate distance between two flanges or groove faces.
Insert the valve and screw on the rest bolts, align inner circles on the pipeline, make sure valve center and flange center are concentric and disc switch position are not blocked by flange inner diameter or near parts, then repeatedly tighten bolts at uniform diagonal.
After finishing installation, once again make sure full open and full open angle.

Why Choose the Hants UL Listed Wafer Butterfly Valve for Fire Protection Flow Control?

UL Listed (USA): Certified for use in fire protection systems, ensuring safe and reliable operation.
Flanged Wafer Design: Securely held between flanges using nuts and bolts for stable installation.
System Shutdown Requirement: Ensures safe installation or removal by draining the system first.

Frequently Asked Questions(FAQ) about Wafer Butterfly Valve

Q: Why choose a wafer-type butterfly valve for compact piping installations?

Compared with bulkier valve body designs, its wafer-type structure helps reduce face-to-face installation space, piping weight, and maintenance complexity, making the HBF-300W well suited for projects that require compact installation, certified performance, and reliable water flow control.
